Sinktops & Drainers
Fully moulded one-piece mouldings with integral sinks and drainers. Semi-moulded drainer tops with factory-bonded sinks. Fully fabricated bespoke units with factory-fitted sinks and drainer boards.
We have a unit to suit your needs: ideally from our standard range of moulded units with the sink and drainer cast as a single piece, or fabricated with your choice of sink size and a variety of moulded drainer options.

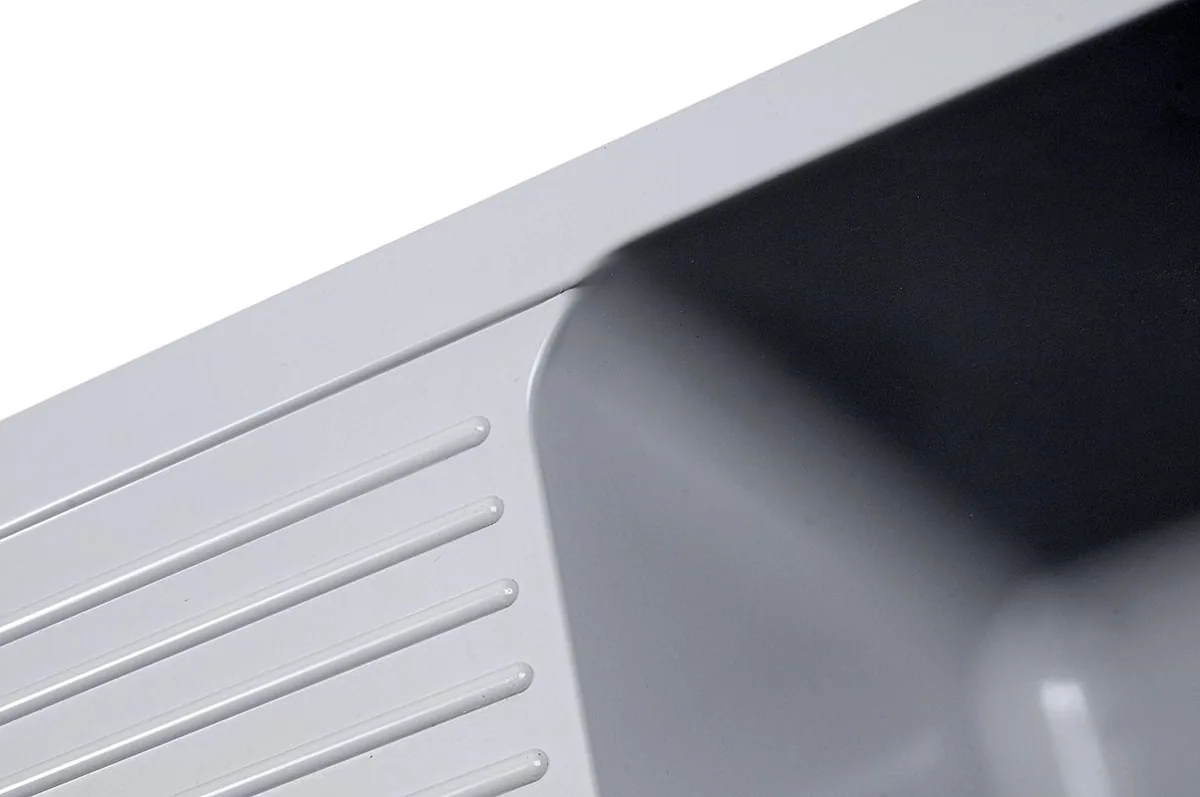

Standard units are cast in one piece, so there are no joints to trap contamination, and the ribbed drainer slopes to the bowl as part of the same moulding. Every unit is cast in the same epoxy resin as our worksurfaces, with the same chemical resistance, in all five standard colours.
Choose a unit.

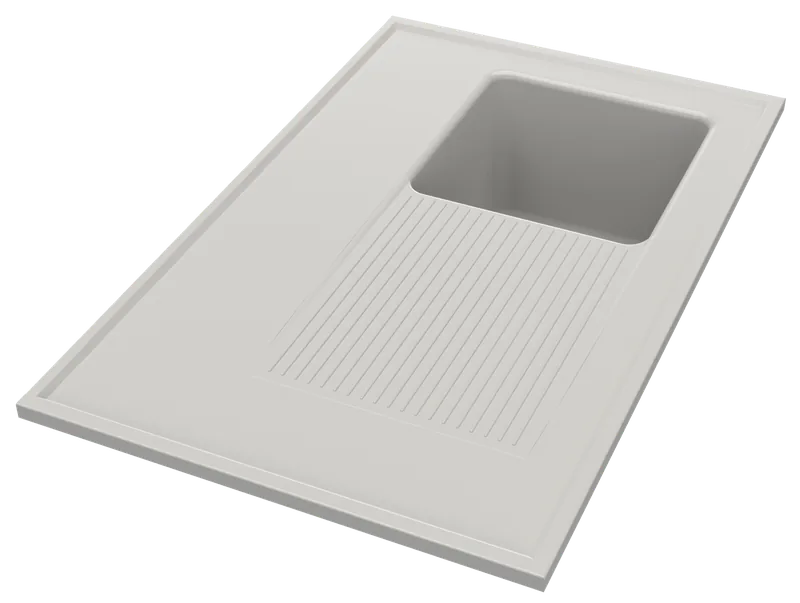

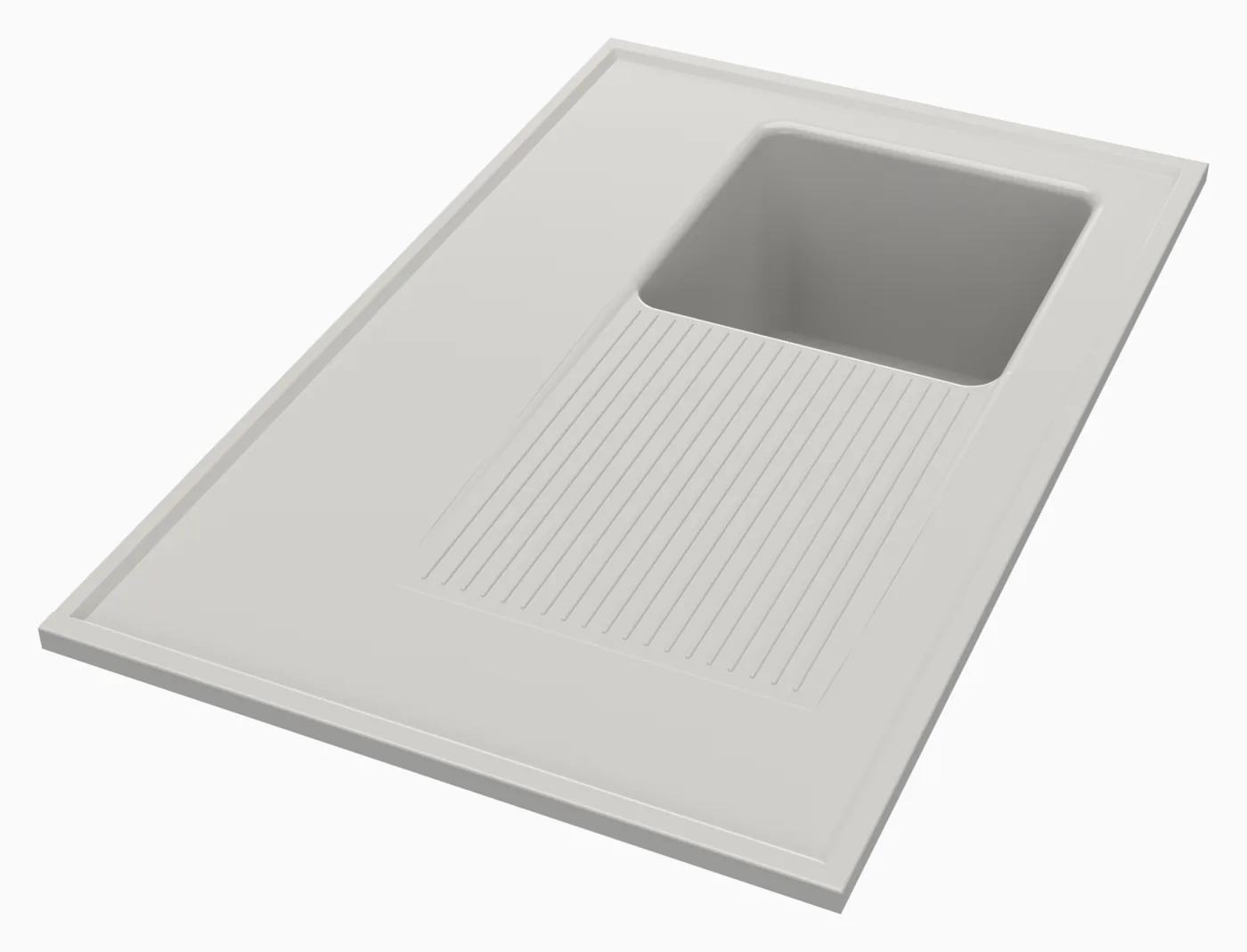

Single drainer
A sink with a sloping drainer to one side, left or right hand. Moulded in one piece, or fabricated with your choice of sink.
View →

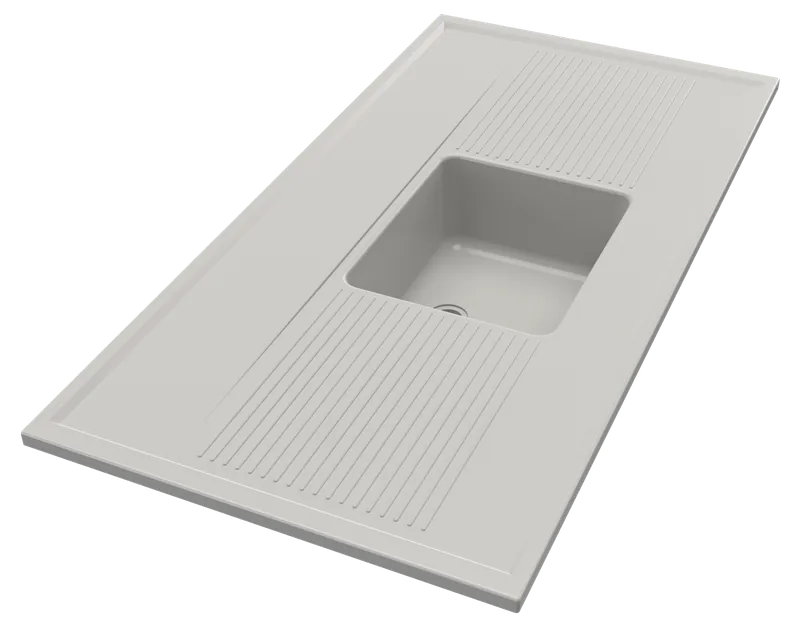

Double drainer
A central bowl with a drainer to each side and a flat area behind for taps.
View →
Bespoke fabricated
Fabricated from 15 mm sheet with your choice of sink, drainer and edging, to your drawing.
View →

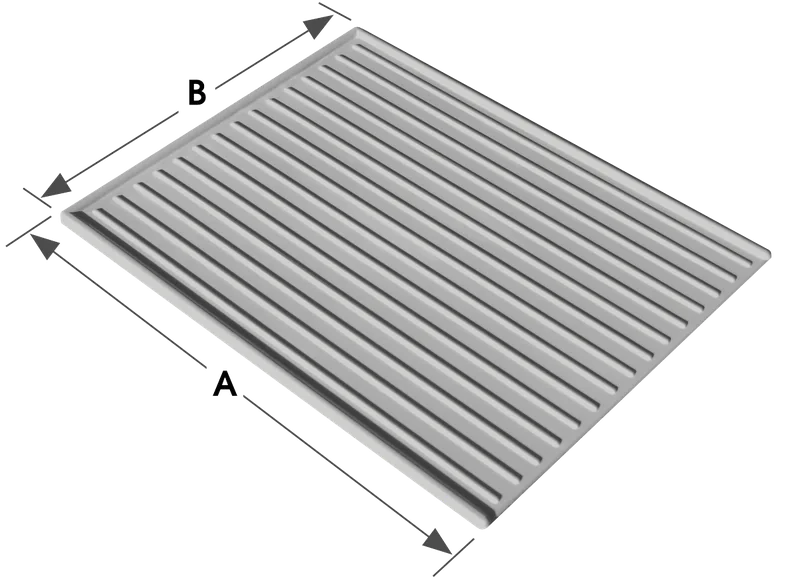

Drop-in and drop-on units
Self-contained sink and drainer units for fitting into a worksurface of another material.
View →Material specification.
Mechanical properties
| Tensile strength at break | 55 N/mm² |
|---|---|
| Tensile modulus | 8,753 N/mm² |
| Elongation at break | 1% |
| Flexural strength | 86.4 N/mm² |
| Flexural modulus | 9,473 N/mm² |
| Compressive strength | 149 N/mm² |
Mean of five specimens. Tensile to ISO 527-2:2012 and flexural to ISO 178:2019, both UKAS-accredited; compression to ISO 604:2003. Impact Solutions, Livingston, report IMP07237-LR, 30 March 2026.
Fire and decontamination
| Flame Spread Index | 10 · UL 723 |
|---|---|
| Smoke Developed Index | 350 · UL 723 |
| Surface-burning classification | Class A |
| Time to ignition | 198 seconds |
| Radioactive decontamination | 5598 · "Excellent" · BS 4247 Part 1 |
Surface burning tested to UL 723 at UL, Northbrook, Illinois, 15 September 2025, on 15 mm black material. Decontamination tested by IRAS to BS 4247 Part 1 Test A, certificate 227, 1992. Not for use with dry ice or liquid nitrogen.
Chemical resistance
24-hour spot test to SEFA 3-2020, 49 reagents, by SGS INTRON in March 2026: no detectable effect from 16 reagents, only a slight change in colour or gloss from 24 more, a clearly discernible change from eight, and one level 3 result, 96% sulphuric acid. The standard allows four level 3 results, so the material conforms. All 49 results.
Test results
- Chemical resistance to SEFA 3-2020, all 49 results (PDF)
- Simmons epoxy specifications, October 2026 (PDF)
The full test reports are available on request.
Five standard colours, one finish.
Every colour is cast with the same semi-gloss finish. Other colours are available to special order, and small material samples are free.
Colours shown are a guide only and cannot be guaranteed to match supplied components.
Request a quote for Sinktops & Drainers.
Send your drawings or requirements and our team will come back with a quotation. Need to see the finish first? Request a free sample.
