Drop-in and drop-on sink and drainer units
Two simple ways to create a self-contained wet area of high chemical resistance in a worksurface of another material.

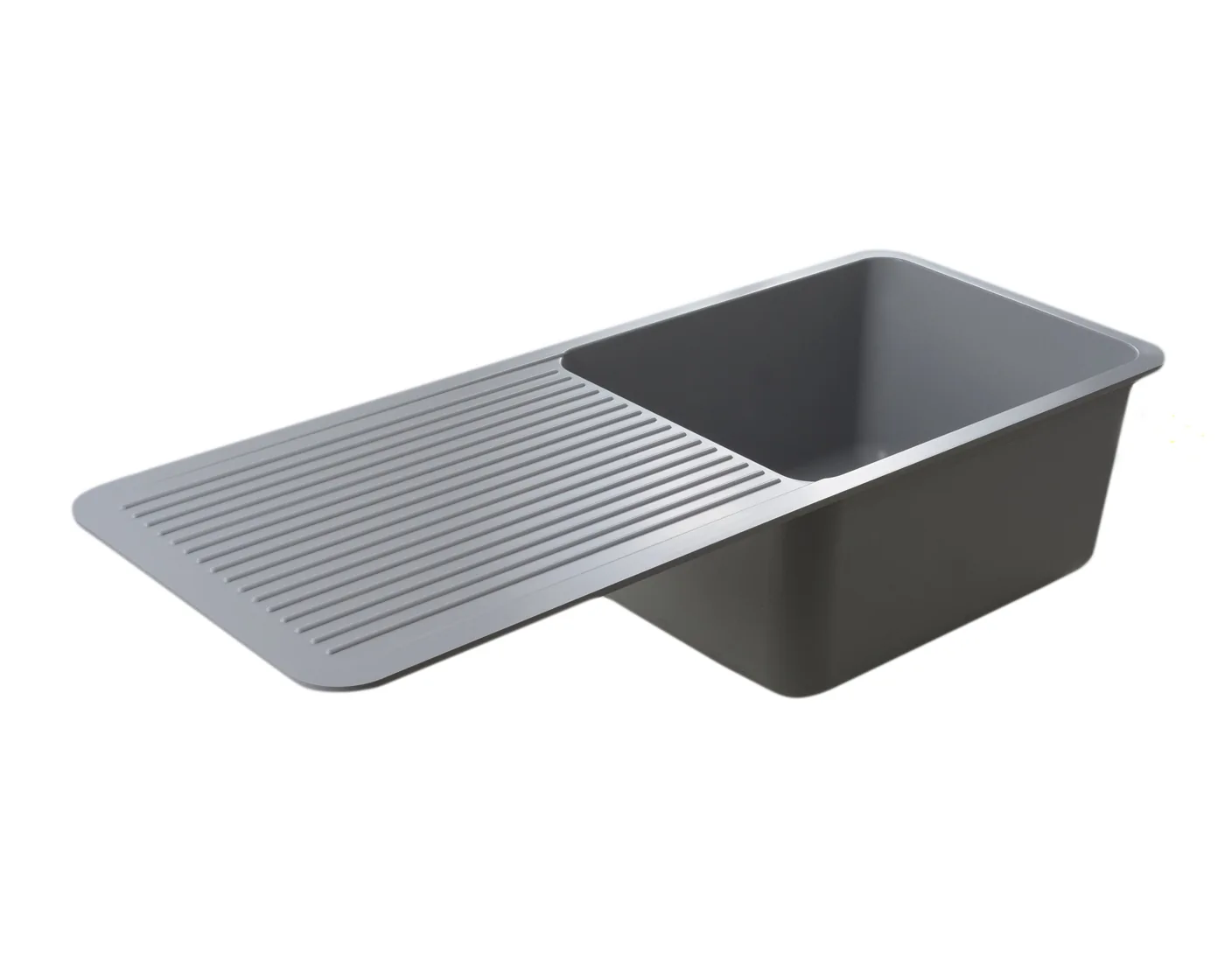

The SD15 and SD55 drop-in units are fitted into a rebated cut-out in the worksurface, so the surface sits level with or just below the worksurface and liquids run into the bowl. The drainer has a built-in fall.
The SD915 drop-on unit is surface mounted onto the worksurface and has a raised lip all round to contain spills.
All three are cast in one piece in the same epoxy resin as our worksurfaces, with the same chemical resistance, in all five standard colours.
Unit sizes.
Overall size of the unit and the internal size of its bowl. Full details, cut-out sizes and fitment diagrams are on the leaflet.
| Ref. | Fitment | Overall size | Bowl size | Waste location | Weight | Files |
|---|---|---|---|---|---|---|
| SD15DI 1 | Drop-in | 860 x 345 mm | 406 x 305 x 203 mm | Next to drainer | 7.5 kg | IFCSTEPRFA |
| SD55DI | Drop-in | 1067 x 423 mm | 635 x 381 x 254 mm | Next to drainer | 14 kg | — |
| SD915DO | Drop-on | 915 x 410 mm | 400 x 300 x 200 mm | Next to drainer | 8.8 kg | IFCSTEPRFA |
- 1 Weight is 7.5 kg in the website tables and 9 kg on the March 2026 leaflet. To be confirmed
Request a quote for a sink and drainer unit.
Send your drawings or requirements and our team will come back with a quotation. Need to see the finish first? Request a free sample.
